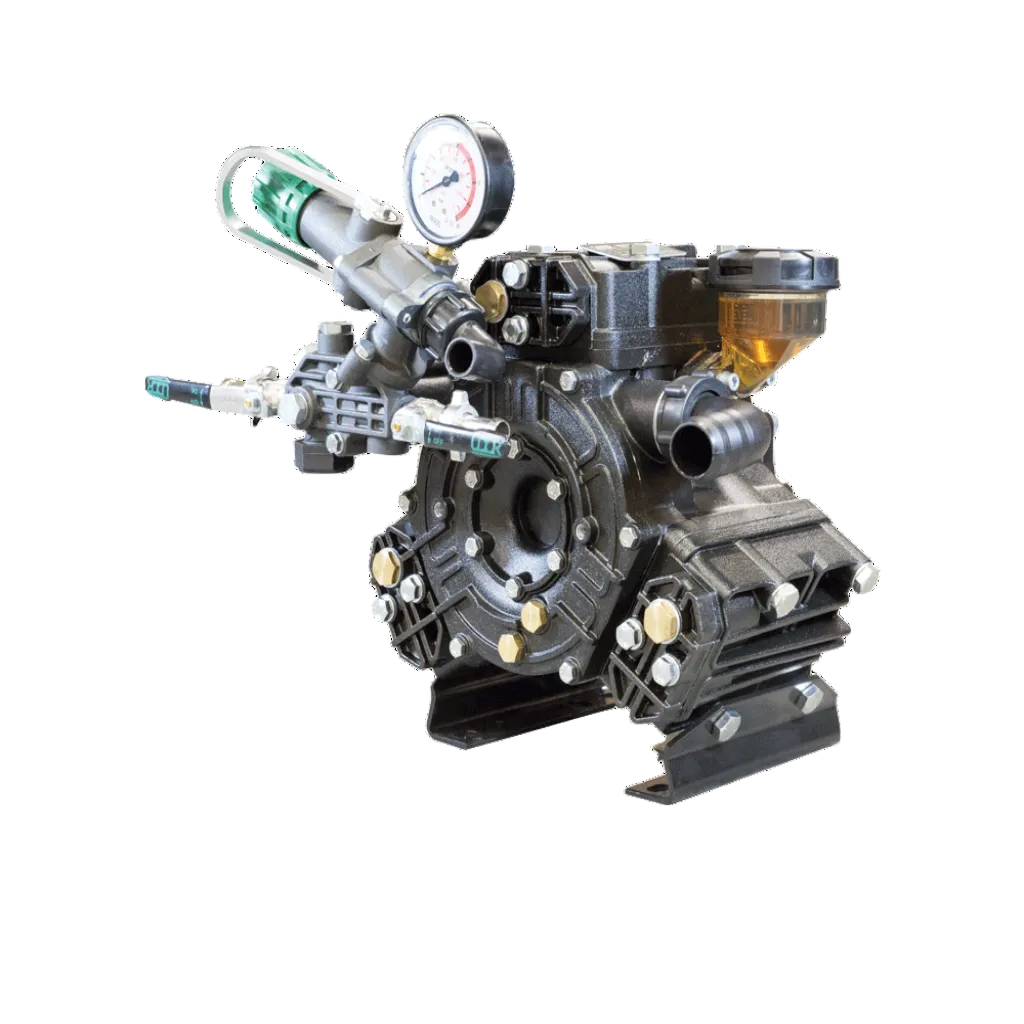

UD-Delta75VA
The UDOR Delta 75 is a high-performance, 3-cylinder medium pressure diaphragm pump designed to withstand the rigorous demands of professional agriculture, landscaping, and industrial cleaning. Delivering a commanding 20.0 GPM at 560 PSI (38 Bar), this pump bridges the gap between high-volume transfer and high-pressure blasting, making it the versatile heart of your sprayer system.
Constructed with an anodized aluminum body and featuring UDOR's exclusive internally manifolded design, the Delta 75 eliminates external plumbing leak points while offering superior corrosion resistance against aggressive horticultural chemicals. Whether you are spraying orchards, de-icing aircraft, or managing turf, the Delta 75 delivers consistent, pulsation-free power backed by Italian engineering pedigree.
| Max Flow Rate | 20.0 GPM (79.0 L/min) |
| Max Pressure | 560 PSI (38 Bar) |
| Max Speed (RPM) | 550 RPM |
| Inlet Port | 1-1/4" Hose Barb |
| Outlet Ports | (2) 1/2" Hose Barb (Ball Valve Controlled) |
| Bypass Port | 3/4" Hose Barb |
| Piston Diameter | 60 mm |
| Stroke Length | 17.0 mm |
| Max Fluid Temperature | 140°F (60°C) |
| Lubrication | 40 oz. UDOR Lube 40W Premium Pump Oil (Alternate: SAE 30W Non-Detergent) |
| Diaphragm Material | GREENTECH |
The Delta 75 is engineered for versatility across multiple sectors where medium pressure and high reliability are paramount:
Ensure you select the correct model for your power source:
| Model | Drive Configuration | Weight | Best Use Case |
|---|---|---|---|
| DELTA 75 VA | Universal Drive Face with Mounting Rails | 46 LBS | Belt & Pulley Systems, Hydraulic Couplers |

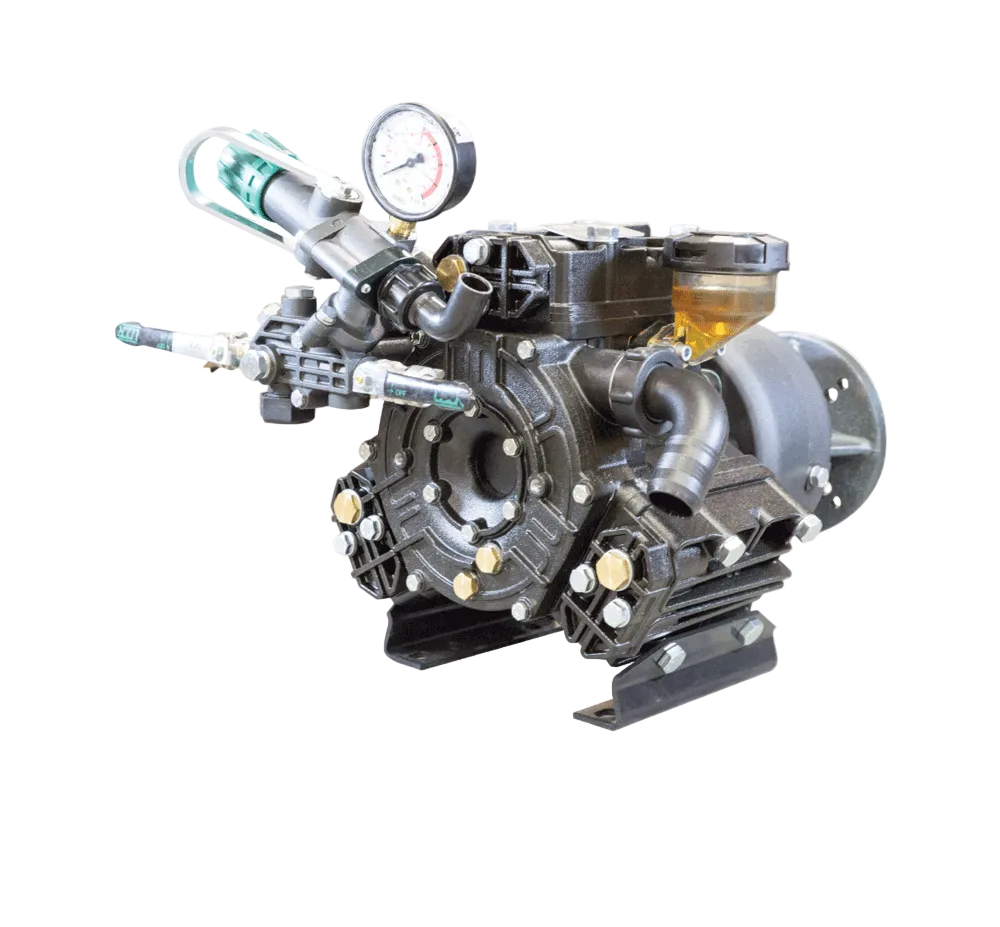

| DELTA 75 VAGR1 | Gear Reduction for 1" Shaft Gas Engine (8-20 HP) | 58 LBS | Gas Engine Skids (Landscaping, Pest Control) |

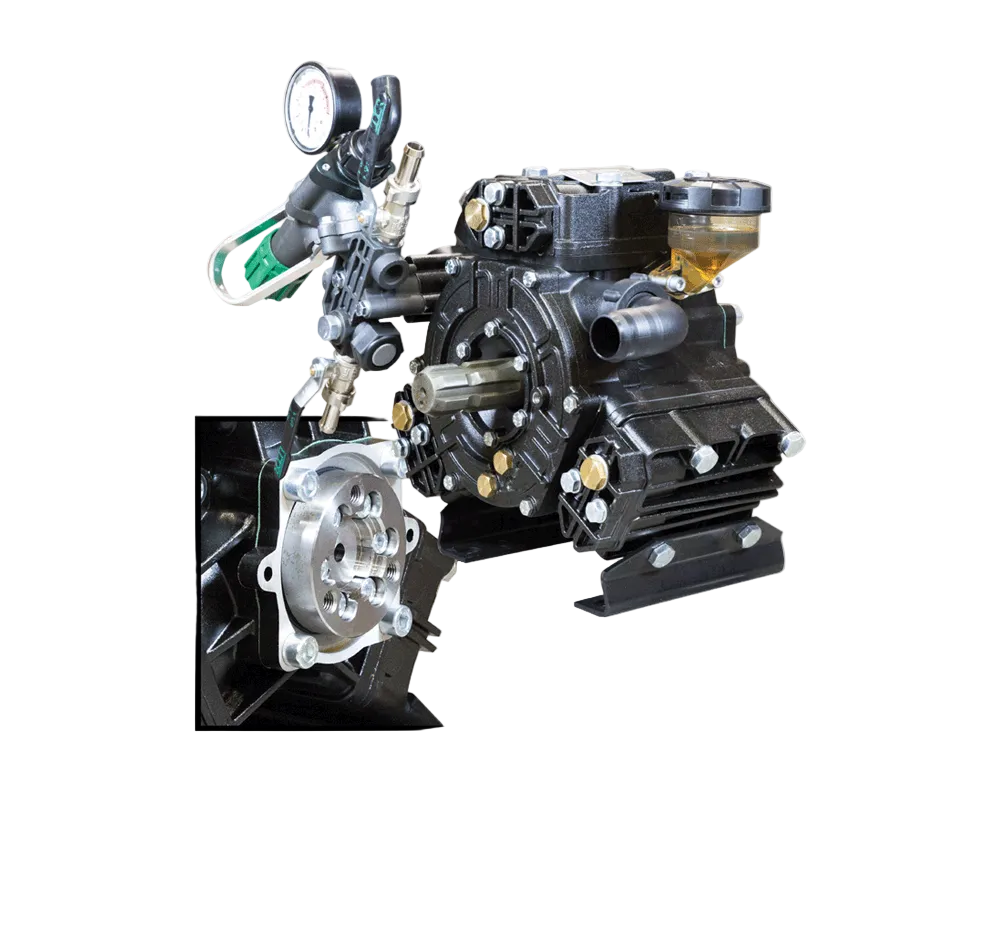

| DELTA 75 TSVA | Universal Drive Face x 1-3/8" 6-Spline Male PTO | 46 LBS | Tractor Mounted Sprayers (Orchards, Vineyards) |
Keep your Delta 75 running at peak performance with genuine UDOR replacement parts:
