JNW-SKID-4009-x-1
Jetters Northwest BRUTE Skid Jetter with Powerslide Mount
9 GPM 4000 PSI or 12 GPM 3000 PSI
EFI Kohler 747cc, UDOR gear-drive triplex, 12-V power-rewind reel, wireless remote.
Price does not include freight or import taxes/duties into Canada.
Estimated import cost is $4900 CAD. Unit is special order and built-to-order and cannot be returned, refunded, or cancelled once production has started.
Gear-drive UDOR pump: no belts to adjust or replace
Kohler EFI 747cc with electric start for reliable, choke-free starts

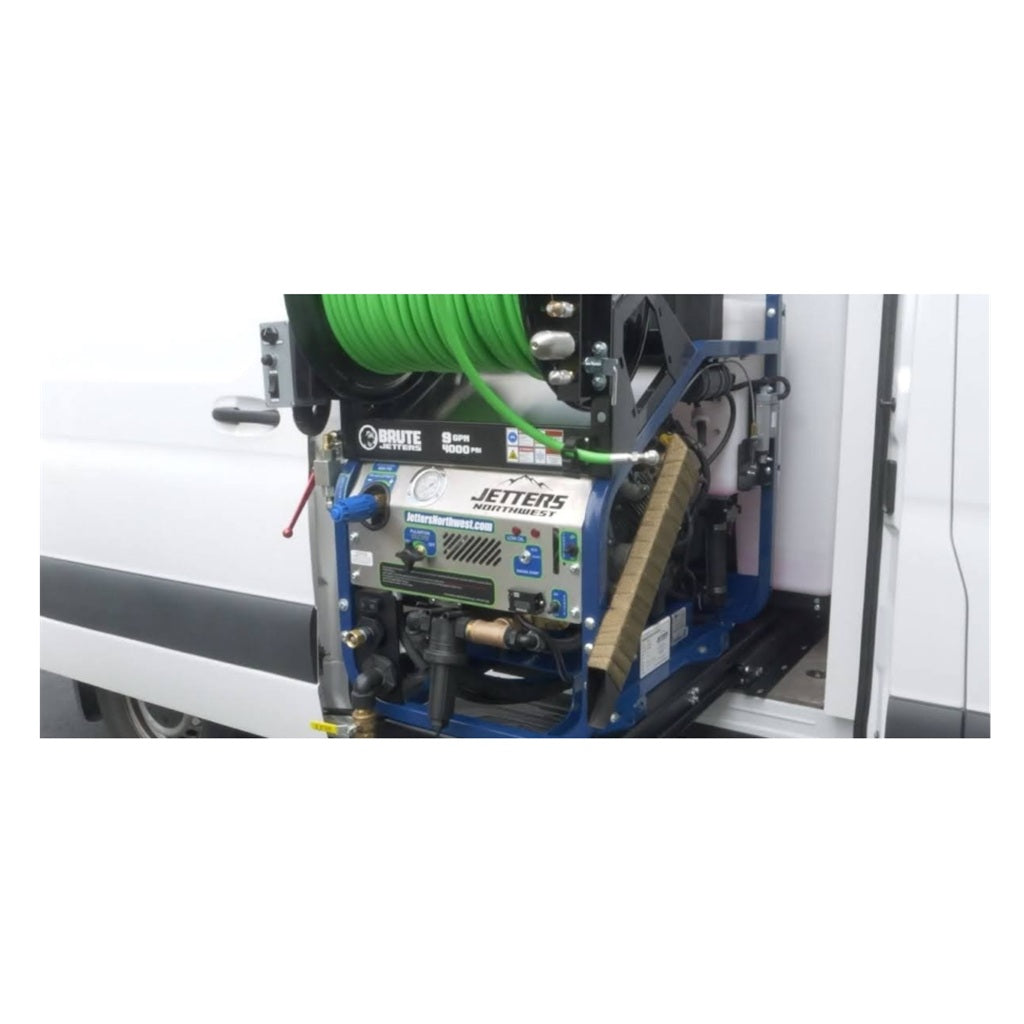

Electric Powerslide base mount for easy access, exhausting, and service
100-gal buffer tank with float valve
Panel-mounted throttle, pressure, pulsation, flow, and reel wind
Adjustable pulsation helps navigate turns and blockages
Return-to-tank pressure control reduces heat buildup
300 ft hose standard; 400 ft upgrade available upon request
Optional wireless remote: engine, throttle, jet on/off
BRUTE is a mountable/van skid jetter built for professional drain cleaning teams who need dependable power in a compact footprint. Choose 9 GPM @ 4000 PSI (4009) or 12 GPM @ 3000 PSI (3012), both driven by a fuel-injected Kohler 747cc engine and a UDOR Super Duty triplex pump with RPM-reducing gear-drive.
Flow/Pressure:
4009 (9 GPM / 4000 PSI): common for 3–6 in lines
3012 (12 GPM / 3000 PSI): excels on 6–8 in mains and higher flow jobs
Hose Length: 300 ft standard / 400 ft optional (≈122 m)
Hose ID: 3/8" on 4009 - 1/2" on 3012

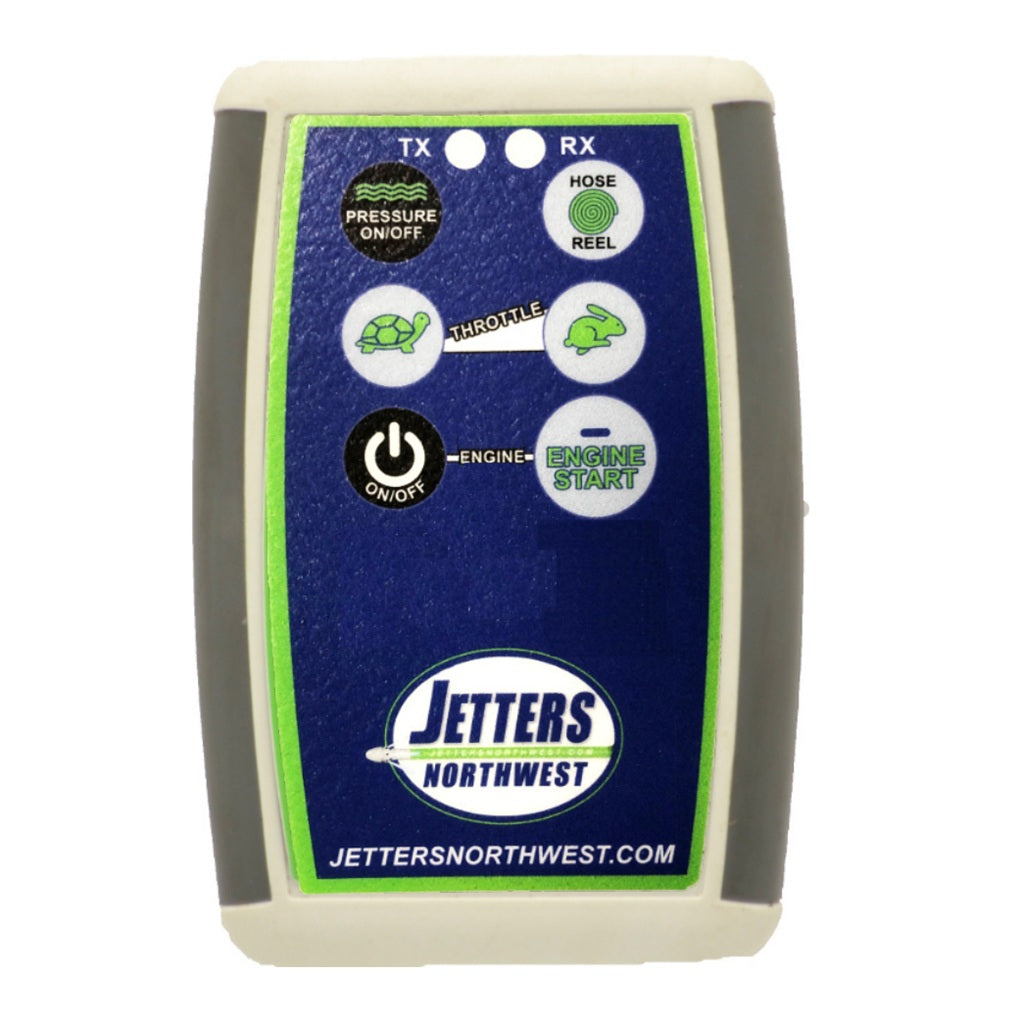

Remote Control: wireless remote for engine start/stop, throttle up/down, jet on/off.
Reel Type: standard 12-V power rewind (1-speed); 12-V ES multi-speed with forward/reverse
Water Tank Options: 100 (standard) / 150 / 200 / 300 gal
All jetting and engine controls are panel-mounted for visibility and safe operation. The remote includes engine start/stop, throttle up/down, and jet on/off:
Engine on/off, throttle, pressure adjustment & gauge
Flow control: ON (pressure to hose/nozzle) / OFF (return to tank)
Adjustable pulsation to help move through bends and obstructions
Reel wind control on panel
Engine: Kohler EFI, 747cc, air-cooled, twin-cylinder OHV, electric start
Pump: UDOR Super Duty triplex with gearbox drive (no belts)
100-gal buffer tank with float valve
Auxiliary tank manifold with ports and return connections for quick hookup to 60/80/100/150/200/300-gal tanks
BRUTE skid jetter (model per selection)
Jetting hose: 300 ft standard (upgradeable to 400 ft)
4 stainless nozzles + tip cleaner + storage box:
Penetrator: 1 front jet / 6 rear (3×25°, 3×45°)
Flusher: 5 rear jets (20°)
Pusher: 3 front (10°) / 6 rear (35°)
Rotator: 2 rear jets rotating at high RPM (45°)
Anti-turnaround extension for safety in larger pipes
Exhaust extension to direct exhaust forward
5-gal EPA/CARB fuel tank installed
4009 (9/4000): typical choice for municipal, facility, and service contractors working 3–6 in lines with higher pressure for cutting and retrieval.
3012 (12/3000): higher flow for flushing 6–8 in mains and longer runs.
Kohler engine warranty per Kohler policy.
Parts, accessories, and service support available through our shop network.

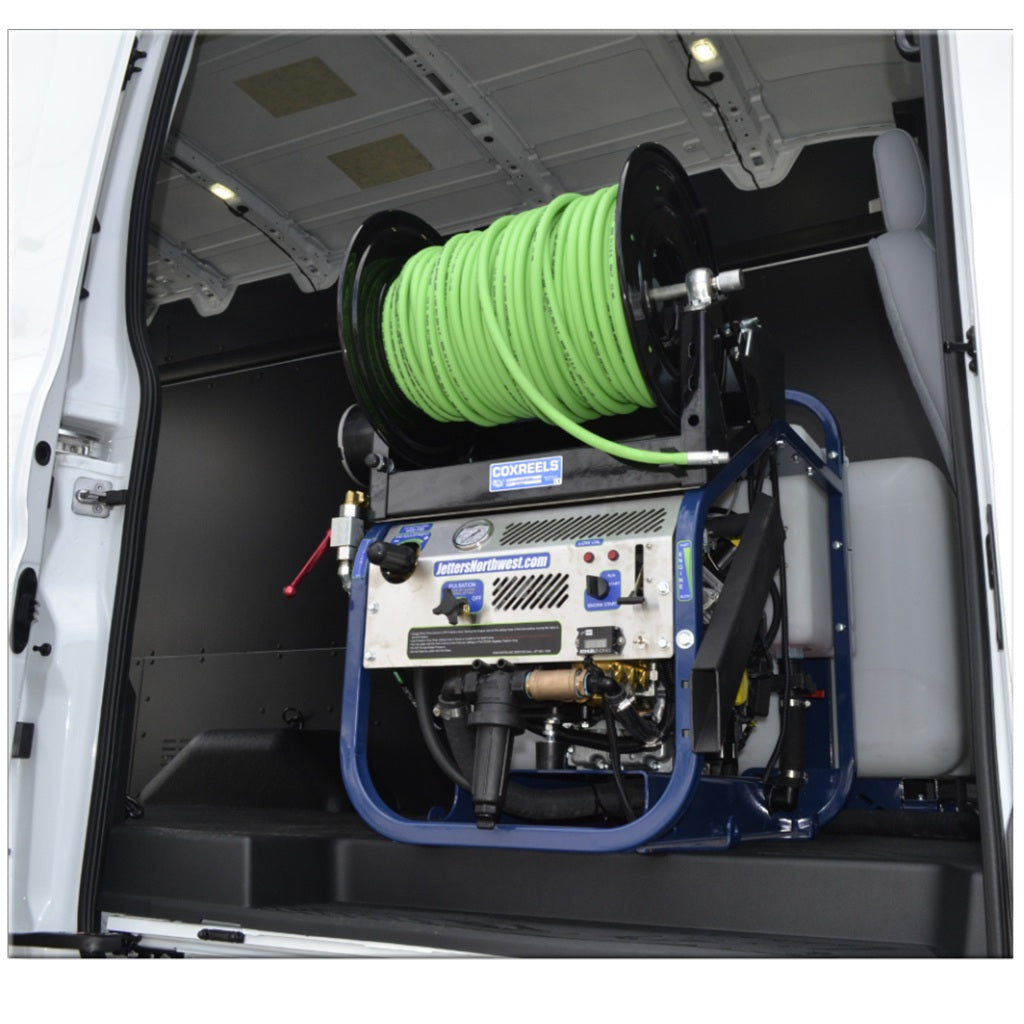

Skid mount in vans, trucks, or trailers.
Freight ships crated; lift-gate available. ATPRO install services offered on request.
EPA/CARB compliant 5-gal fuel tank.
Use antifreeze procedures when freezing is possible.
Follow PPE and safe jetting practices.
Q: Which model for mixed residential/commercial routes?
A: The 4009 is a strong all-rounder for 3–6 in lines; step to 3012 when longer 6–8 in mains and high-flow flushing are frequent.
Q: Can I add a water tank later?
A: Yes. The skid mount unit comes with 100gal tank and has ports and manifold for easy connection to any tank.
Q: Does the remote start the engine?
A: Yes—remote controls engine start/stop, throttle up/down, and jet on/off.
Q: Can I reverse the reel?
A: Choose the
ES reel upgrade for multi-speed
forward/reverse. Standard power reel is 1-speed forward.
Q: Hand-crank reel available?
A: Yes, by request (usually special-order).
