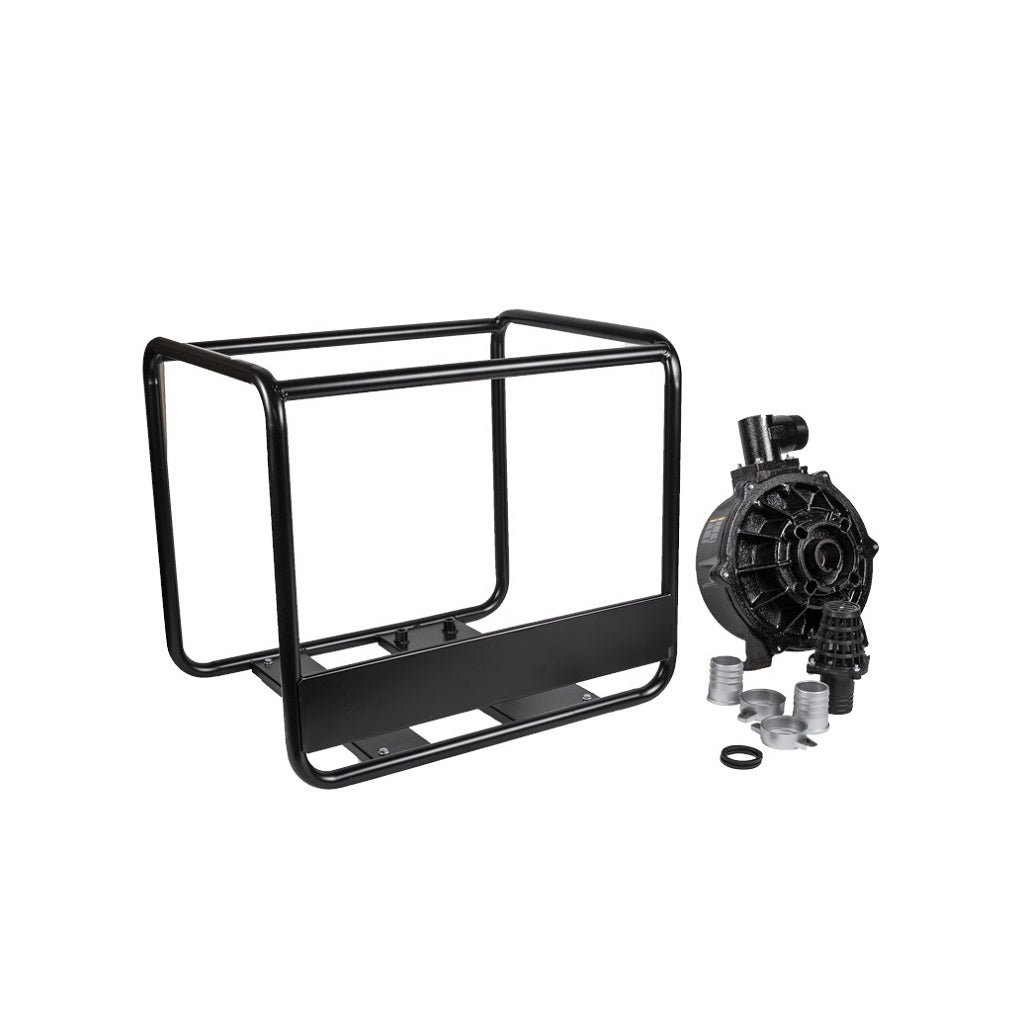

BE 85.150.206 High Pressure Pump Assembly and Frame Kit for HP-2013HR
Direct-fit replacement 2 inch high-pressure pump assembly and roll-cage frame for the BE HP-2013HR.
2 INCH PORTS
CAST IRON HOUSING
HP-2013HR FITMENT
Replacement Purpose
COMPATIBLE MODEL: BE HP-2013HR
Built as a replacement pump and frame assembly for the HP-2013HR high-pressure water transfer pump.
PUMP CONSTRUCTION: Cast iron housing with aluminum impeller
Features 2 inch inlet and outlet connections mounted in a powder-coated steel roll-cage frame.
Original Equipment Performance
HP-2013HR REPLACEMENT CONFIGURATION
When installed in the correct HP-2013HR configuration, the pump system is rated for up to 140 GPM at 143 PSI with 26 ft suction lift, 304 ft discharge lift and 330 ft total lift.
⚠️ COMPATIBILITY NOTE: Confirm model and part number before ordering. This SKU is the replacement pump assembly and frame for the BE HP-2013HR; it is not a complete engine-powered pump. Engine, hoses and fire-suppression accessories are not included.
⚠️ FIRE SUPPRESSION SUPPORT NOTE: When installed as part of an HP-2013HR system, this equipment is intended for high-pressure water transfer and fire-suppression support only. It is not NFPA approved and is not intended for direct fire combat or attack-line use.
Technical Specifications
| Part Number: |
85.150.206 |
| Compatible Model: |
BE HP-2013HR |
| Product Type: |
High-pressure water pump assembly and frame |
| Port Size: |
2 Inch Inlet / Outlet |
| Housing / Impeller: |
Cast Iron / Aluminum |
| Frame: |
Powder-Coated Steel Roll Cage |
