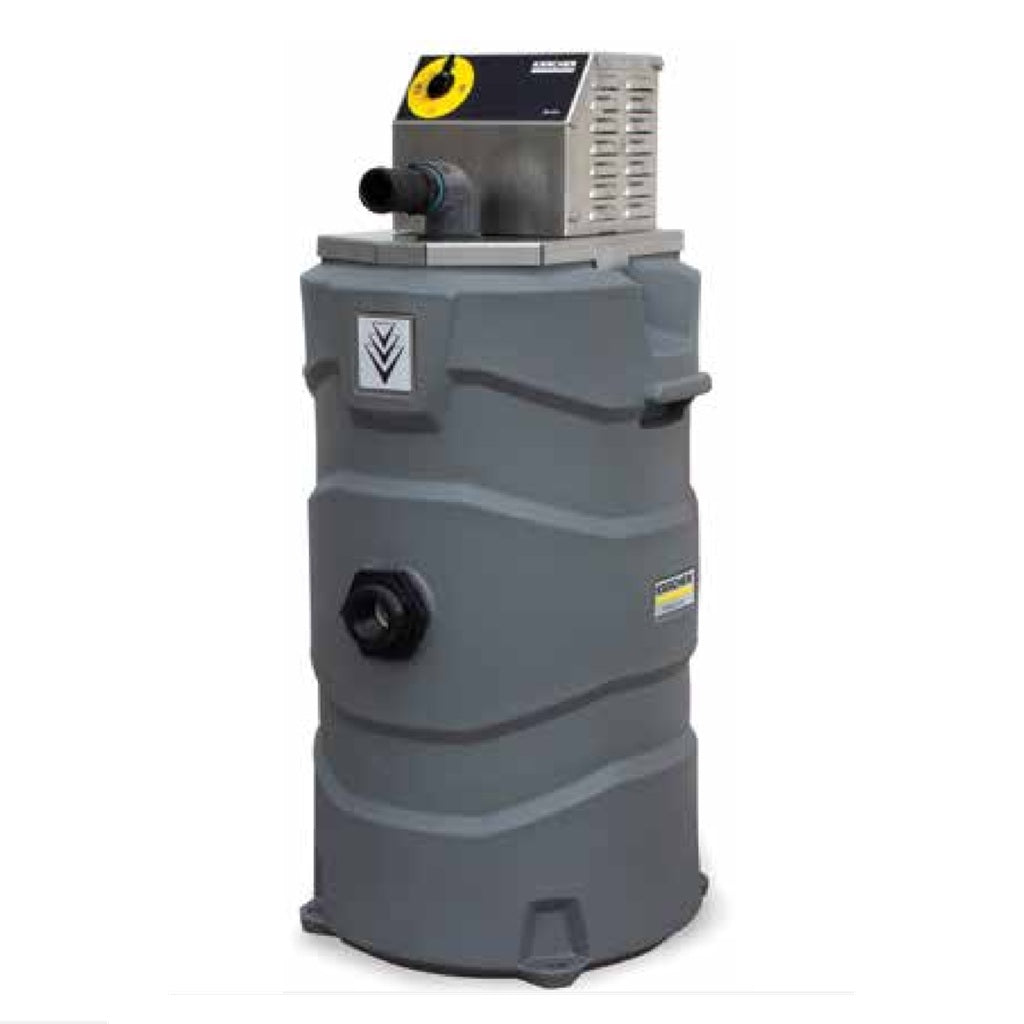

Karcher Mississippi Water Recovery System

The Mississippi Recovery System collects and transfers wash water to a separate holding tank. Its compact footprint and integrated mounting provisions allow it to be incorporated into mobile and trailer-mounted wash-water recovery systems.

Technical Specifications

Included Equipment

The vacuum inlet is configured for the included 2-inch recovery hose and scupper head.

Vacuum and Recovery System

• 3-stage vacuum motor
• 100 CFM airflow
• 100 in. sealed lift
• Recovery and transfer capacity up to 30 GPM
• Rated for recovering water up to 120°F
• Compatible with recovery surface cleaners and hot-water pressure-washing equipment
• High-water shutdown protects the unit when the recovery tank reaches its operating limit
• 120V transfer pump moves recovered water to a separate holding tank
• Bulkhead fitting can be plumbed to an auxiliary tank for higher-volume recovery requirements
• Top-access filter basket captures solids before they enter the recovery system

Tank and Construction

• 27-gallon high-density polyethylene recovery tank
• Thermal- and chemical-resistant tank construction
• Impact-resistant and UV-protected tank
• Integrated molded carrying handles
• Bolt-on mounting provisions built into the base for trailer installation
• Compact configuration for mobile recovery systems

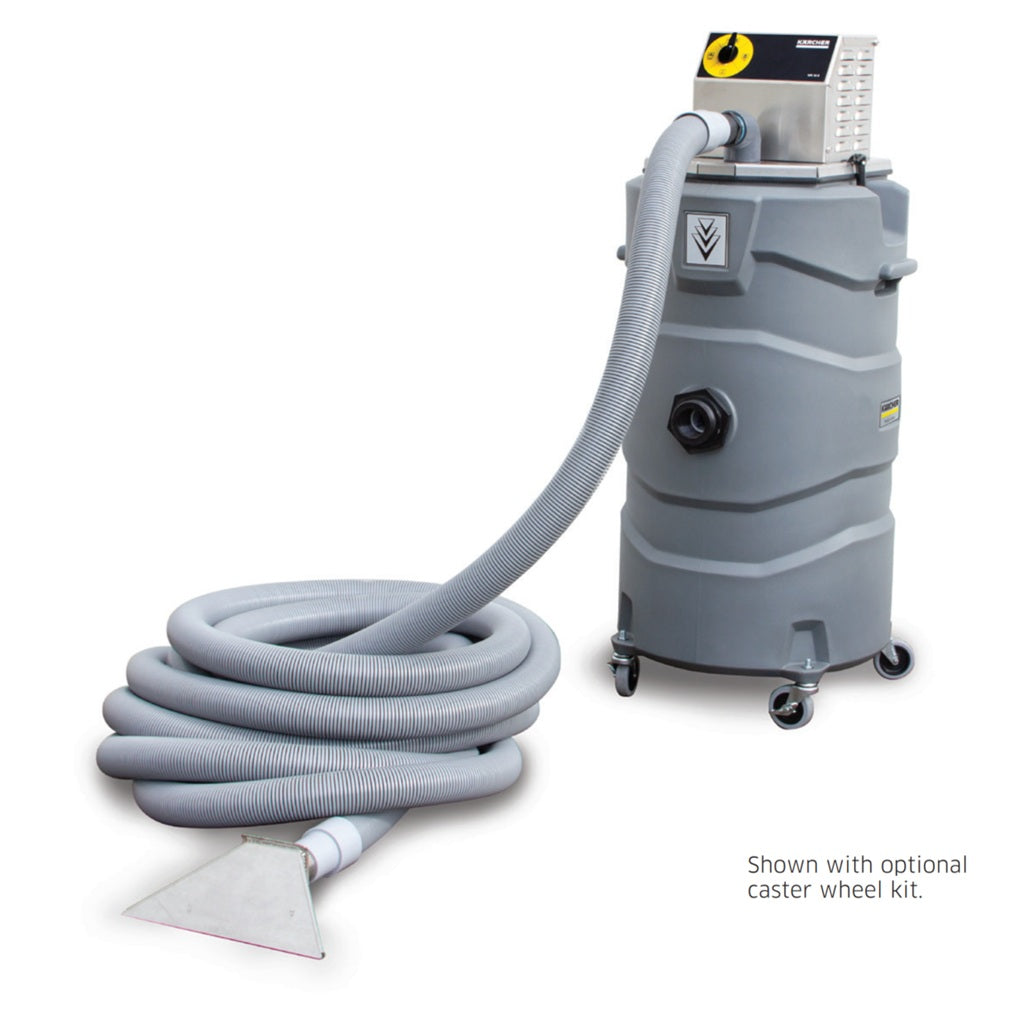

• Optional caster-wheel kit available for movement around the jobsite

System Requirements and Notes

• Recovered water is transferred to a separate holding tank.
• Holding tank is not included.
• Pressure washer is not included.
• Recovery surface cleaner is not included.
• Optional drain covers and water dikes can be used to contain runoff and prevent wash water from entering drains or leaving the work area.
• A compatible pressure washer, recovery surface cleaner and holding tank are required to configure a complete mobile recovery system.
