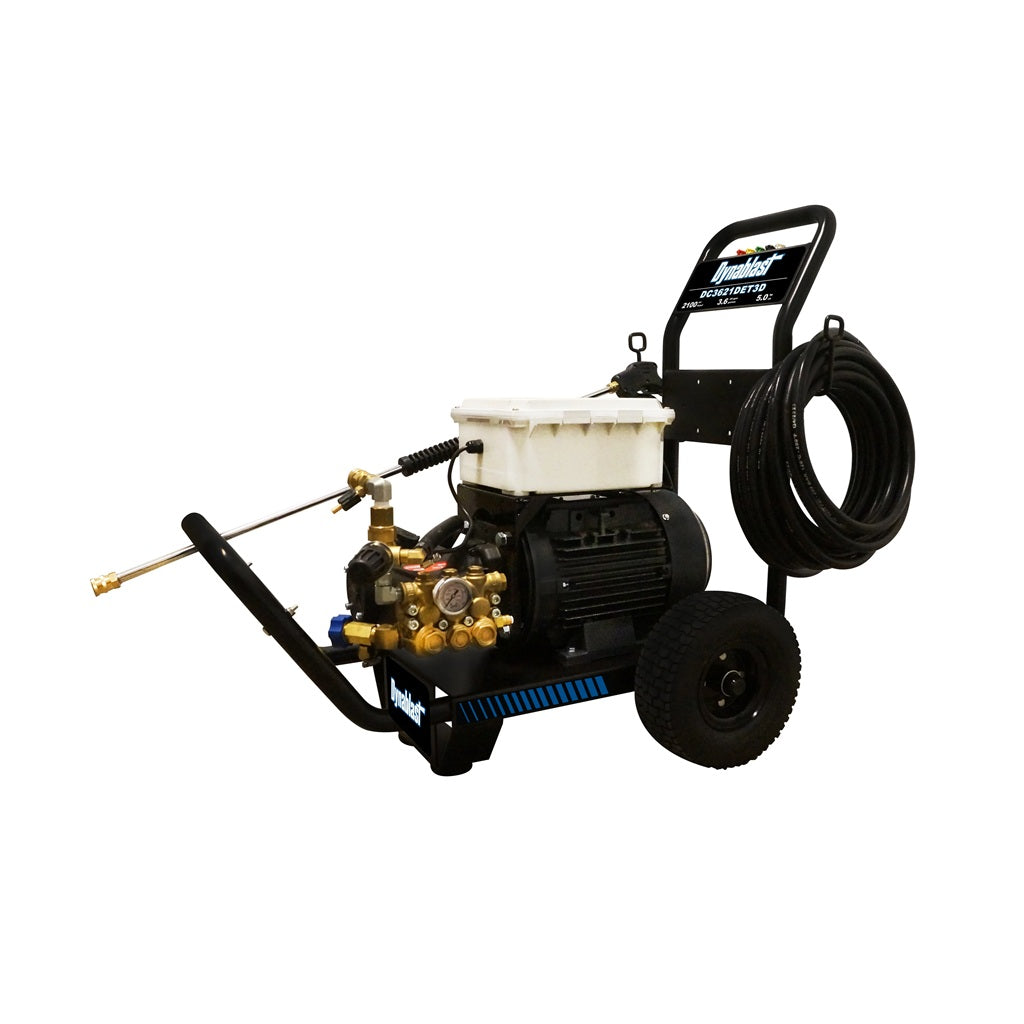

DC3621DET3D
Industrial 575V 3-Phase Cold Water Pressure Washer with TDS
⏱️ TIME DELAY SHUTDOWN
2100 PSI
3.6 GPM
575V / 3-PHASE
🛡️ CLICK FOR WARRANTY & POLICY INFORMATION
▼
WARRANTY COVERAGE:
✅ 1-Year Limited Industrial Warranty
✅ Interpump Triplex Pump Coverage
✅ Assembled in Canada
⚠️ WHAT IS NOT COVERED:
Warranties cover
Manufacturer Defects only. Exclusions apply for wear parts (nozzles, seals, hoses), freeze damage, or running the pump without water.
PLANT-GRADE EFFICIENCY
AUTOMATIC MOTOR PROTECTION
The DC3621DET3D is specifically engineered for 575V 3-Phase industrial environments. It comes standard with
Time Delay Shutdown (TDS), which uses an integrated flow switch to shut the motor off after a set period of idling. This critical feature prevents the pump from overheating in bypass mode and saves on energy costs while operating at a highly efficient 5.1A draw.
POWER & PUMP SPECS
MOTOR: 5.0 HP ELECTRIC (575V)
Industrial slow-speed 1,750 RPM 3-phase motor. Engineered for maximum longevity in continuous-duty applications. Draws only 5.1 Amps.
PUMP: INTERPUMP TRIPLEX PLUNGER
Direct-drive industrial triplex pump with thermal protection and an
External Unloader. Factory-integrated with TDS controls.
KEY FEATURES
-
Industrial Convertible Frame: Black powder-coated cart with 10" pneumatic wheels.
-
3-Phase Reliability: Superior electrical efficiency for manufacturing and mining plants.
-
Canadian Assembly: Proudly assembled in Canada and ETL Certified.
-
Heavy-Duty Accessories: Includes 50' high-pressure hose, trigger gun, and 36" zinc-coated lance.
-
Nozzle Set: Includes 0°, 15°, 25°, 40°, and Soap quick-connect nozzles.
JOB CAPABILITY
INDUSTRIAL RINSING POWER
Ideal for large-scale industrial maintenance, agricultural facilities, and processing plants. The 3.6 GPM flow rate provides the volume needed for efficient rinsing, while the 575V configuration ensures steady power delivery in heavy industrial grids.
LOGISTICS:
Weight: 195 lbs
Dimensions: 33" L x 23" W x 26" H
Electrical: 575V / 5.1A Draw / 3-Phase / 15A Circuit
Note: Ships via LTL Freight. Professional industrial electrical installation required.
