Spraying Systems 1/4" Washjet MEG 15°
ATPRO spray angle and application guide chart with different colored nozzles and their uses.

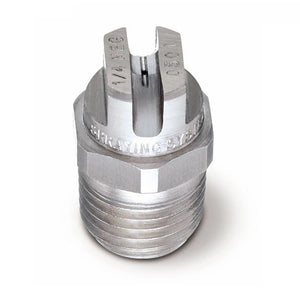

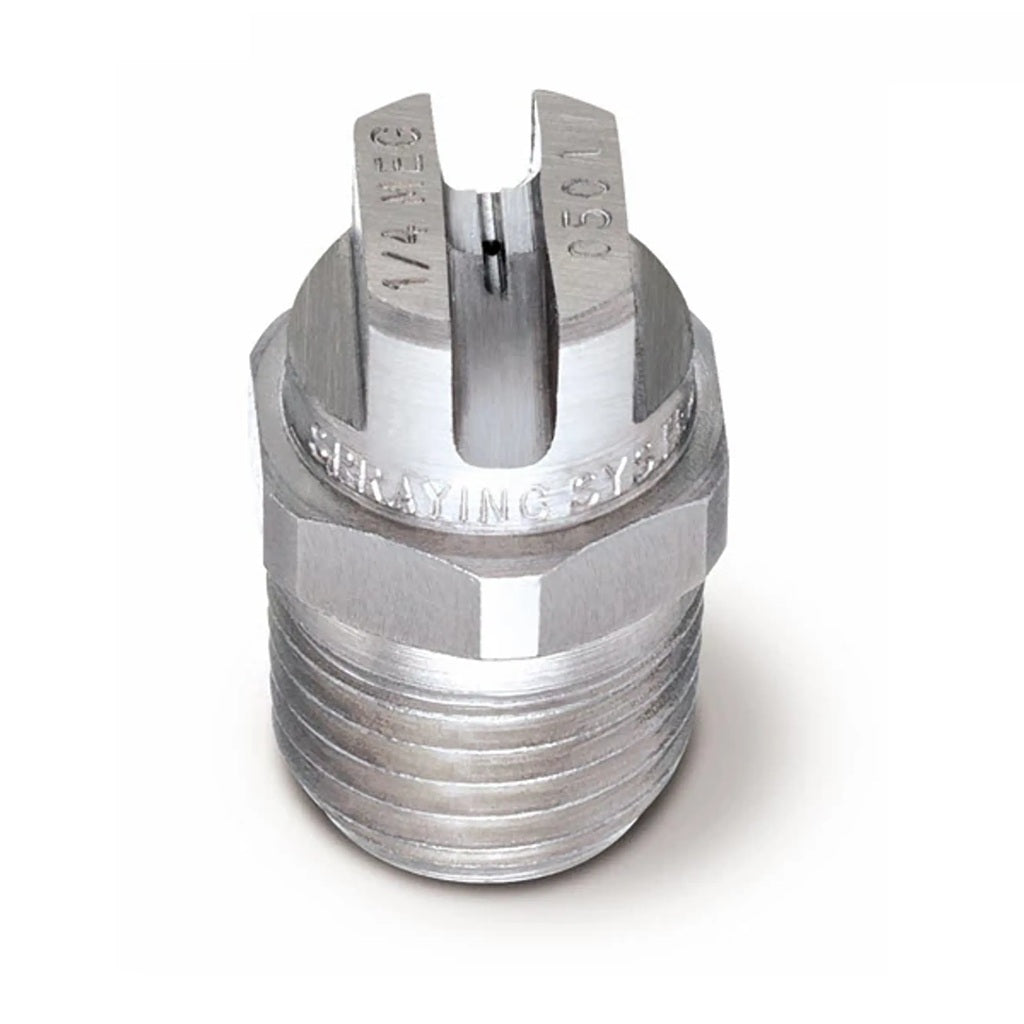

Spraying Systems 1/4" Washjet MEG 15° 4000psi

SM-8.707-640.0

$17.80
Orifice Size: #02.0
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
✓
In Stock · Canada Warehouse
Ships from Surrey, BC. Usually ships in 1–2 business days.
✓
In Stock · Canada Warehouse
Ships from Surrey, BC. Usually ships in 1–2 business days.
✓
In Stock · Canada Warehouse
Ships from Surrey, BC. Usually ships in 1–2 business days.
✓
In Stock · Canada Warehouse
Ships from Surrey, BC. Usually ships in 1–2 business days.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.
⏳
Import · USA Stock · Duty Free
This specific size is currently out of stock in Surrey, BC. We will import it into our Canada warehouse first (approx. 2–3 weeks).
Contact us for availability checks, faster options, or alternatives.

The "Chiseling" Nozzle: Precision Scraper Edge

The Spraying Systems WashJet® 15° MEG Nozzle turns your water pressure into a hardened scraper blade. While generic nozzles often suffer from a "hot center" (high pressure in the middle, weak at the edges), WashJet nozzles are engineered for Even-Edge distribution.

This means the impact force is uniform across the entire width of the 15° fan. Whether you are stripping paint or pushing heavy grease, every millimeter of the spray pattern works with equal intensity. This is also a high-impact upgrade for Whisper Wash and BE Whirl-A-Way surface cleaners (requires 1/4" threads).

✅ The WashJet® Advantage: 404 Series Steel

WashJet MEG nozzles are constructed from premium Hardened 404 Series Stainless Steel. This alloy is engineered to withstand the dual threat of high-pressure erosion and chemical corrosion from softwash mixes (SH). This ensures your chiseling fan pattern remains sharp and effective long after standard stainless tips have washed out.

⚠️ Precision Sizing Required

Selecting the wrong orifice size is the #1 cause of decreased performance.

  • Too Small: Your unloader valve will bypass water to limit pressure. This reduces the flow rate at the tip, killing your cleaning efficiency.
  • Too Big: System pressure drops drastically, significantly reducing your impact force and cleaning power.

Use the Smart Calculator below to find your exact match.

📐 Nozzle Size Calculator

Enter your machine's specs to generate the recommended orifice size.

(Check this box if installing on a spray bar to split the flow)
Exact Calculation:
# 4.00
Recommended Orifice Size: # 4.0
Gas HP
14.5 HP
Elec HP
11.0 HP
Hyd HP
9.3 HP

Disclaimer: This calculator is a guide only. Always verify your equipment's specific requirements before installing high-pressure components.

Note: When calculating for Surface Cleaners, we round DOWN to maintain rotation speed.

Technical Specifications

Model Spraying Systems WashJet® MEG
Thread Type 1/4" NPT Male
Material Hardened 404 Stainless Steel
Rated Pressure 4,000 PSI
Spray Angle 15° Chiseling Fan

Spray Angle Color Guide

Note: WashJet MEG nozzles are unpainted stainless steel. The list below references the matching Quick Connect industry standard colors.

  • 🔴 0° (Red): Cutting / Hydro-Excavation / J-Rod High Reach.
  • 🟡 15° (Yellow): Chiseling / Paint Stripping / Heavy Grease.
  • 🟢 25° (Green): Flushing / Surface Cleaners / J-Rod Close Application.
  • ⚪ 40° (White): Washing / Windows / Siding.

Professional 15° Use Cases:

  • Paint Stripping: The 15° angle creates a concentrated line of force ideal for lifting peeling paint from wood or masonry without the damage risk of a 0° tip.
  • Grease & Oil: Acts as a "fluid broom" for heavy shop floors and equipment. The uniform pressure pushes thick sludge rather than cutting through it.
  • Concrete Cleaning: Use for removing gum, tar, or deep stains from concrete where a wider fan (25°/40°) won't penetrate.

🚀 Surface Cleaner "Stripping" Upgrade

For professionals needing maximum aggression, these 15° nozzles can be installed on 1/4" NPT Spray Bars (Whisper Wash, BE Whirl-A-Way) to strip exposed aggregate or heavily soiled commercial concrete.

The WashJet® Difference: The precise "Even-Edge" fan pattern significantly reduces the risk of tiger-striping compared to standard 15° tips, ensuring a uniform cut even at high RPMs.

💧 Softwash & J-Rod Sizing Guide

Because WashJet nozzles are available in the large Orifice Sizes required for J-Rods and nozzle holders, they serve dual purposes for Softwash and high pressure applications.

  • Small Sizes: Used for High Pressure Rinse.
  • Large Sizes (#30 - #60): Used for Low Pressure Soap Application.
Your Machine Standard Rinse Tip (High PSI) Standard Soap Tip (Low PSI)
2 - 3 GPM Size # 10.0 Size # 30.0
3.5 - 4.5 GPM Size # 10.0 Size # 40.0
5 - 6.5 GPM Size # 15.0 Size # 40.0
7 - 8.5 GPM Size # 20.0 Size # 60.0

Note: Installing a #30 - #60 nozzle on a standard machine will drop pressure drastically, automatically engaging your downstream chemical injector.
