HW3524HA12V
Industrial Honda-Powered High-Volume Stationary Hot Water Skid
🔥 200°F HEAT
3500 PSI
8.5 GPM
🛡️ CLICK FOR WARRANTY & POLICY INFORMATION
▼
STANDARD COVERAGE:
✅ 3-Year Honda GX Engine Warranty
✅ 5-Year CP Triplex Pump Warranty
✅ 3-Year Beckett Burner Warranty
✅ Lifetime Heating Coil Warranty
⚠️ WHAT IS NOT COVERED:Warranties cover
Manufacturer Defects only. The following are
EXCLUDED:
-
Wear Parts: O-rings, valves, nozzles, gun/wand.
-
User Error: Freeze damage (failure to winterize), running without water, or fuel contamination.
POWER & HEATING
ENGINE: HONDA GX690 V-TWIN (688CC)
High-performance V-Twin with Electric Start. Engineered for continuous-duty industrial cleaning and superior torque.
BURNER: 12V BECKETT DIESEL BURNER
High-efficiency 315,000 BTU burner system. Quickly reaches 200°F (93°C) for maximum grease-cutting and degreasing power.
PUMP: CP CTB2S TRIPLEX
Professional P10 class triplex pump featuring a reinforced body, forged brass manifold, and solid ceramic plungers.
COIL: 1/2" SCH. 80 COLD ROLLED STEEL
Industrial 96' heating coil backed by a lifetime warranty against manufacturer defects.
PRO-SETUP: TANK & BYPASS READY
OPTIMIZED FOR TRUCK & TRAILER BUILDS
This unit is specifically engineered for professional mobile setups. The
External Unloader allows for a "bypass-to-tank" configuration, while the belt drive pump is ideal for drawing from a tank with much better suction lift than direct drive pumps.
KEY FEATURES
Extreme Duty Fuel Capacity
MASSIVE DUAL TANKS:
Includes two high-capacity 14.4-gallon poly tanks (Diesel for burner / Gasoline for engine) for full-shift industrial operation.
Heavy-Duty Stationary Skid
-
Stationary Skid Frame: Reinforced powder-coated steel designed for permanent truck or trailer mounting.
-
Electric Start with 55AH Marine battery included for effortless ignition.
-
Full Monitoring: Integrated hour meter, pressure switches, and thermal relief valves.
- Centralized hoist point for secure positioning via crane or forklift.
JOB CAPABILITY
3500 PSI @ 8.5 GPM — THE INDUSTRIAL RINSE STANDARD
When maximum flushing volume is required. The massive 8.5 GPM flow rate provides the extreme rinsing power needed for clearing heavy mud from mining equipment, large-scale agricultural barns, and massive industrial grease remediation projects.
- Permanent Truck & Trailer Rigs
- High-Volume Mining Equipment Maintenance
- Industrial Machinery Degreasing
- Large-Scale Agricultural Sanitation
- Massive Oil & Grease Remediation
- Construction Site Washdown

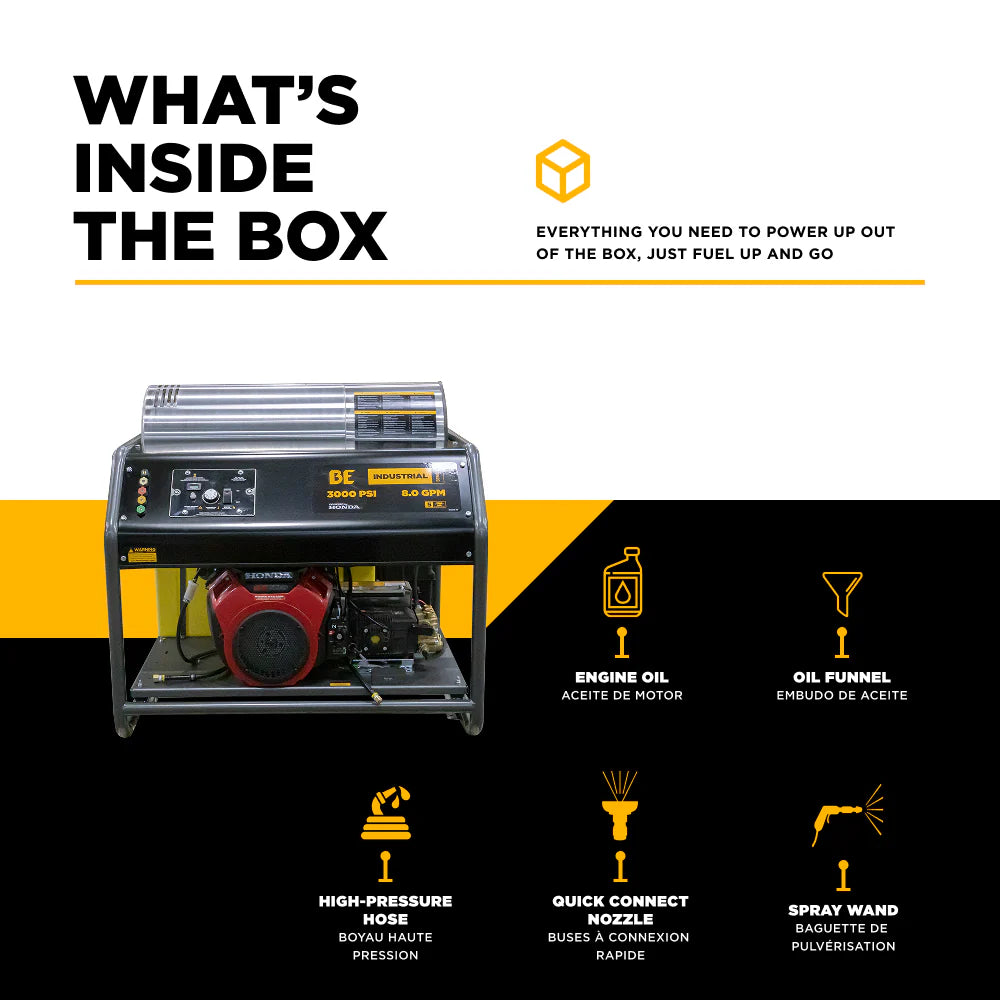

IN THE BOX
- 1x
50' Wire Braided High-Pressure Hose
- 1x
Professional Insulated Spray Wand & Gun
- 5x
Quick-Connect Nozzles (0°, 15°, 25°, 40°, Soap)
- 1x
55AH Marine Battery
- 1x
Adjustable Soap Injector
LOGISTICS:
Unit Weight: 976 lbs
Dimensions: 48" L x 46" W x 51" H
Fuel Type: Gas (14.4 Gal Engine) / Diesel (14.4 Gal Burner)
Note: Ships via LTL Freight. Professional tank-plumbing recommended.
