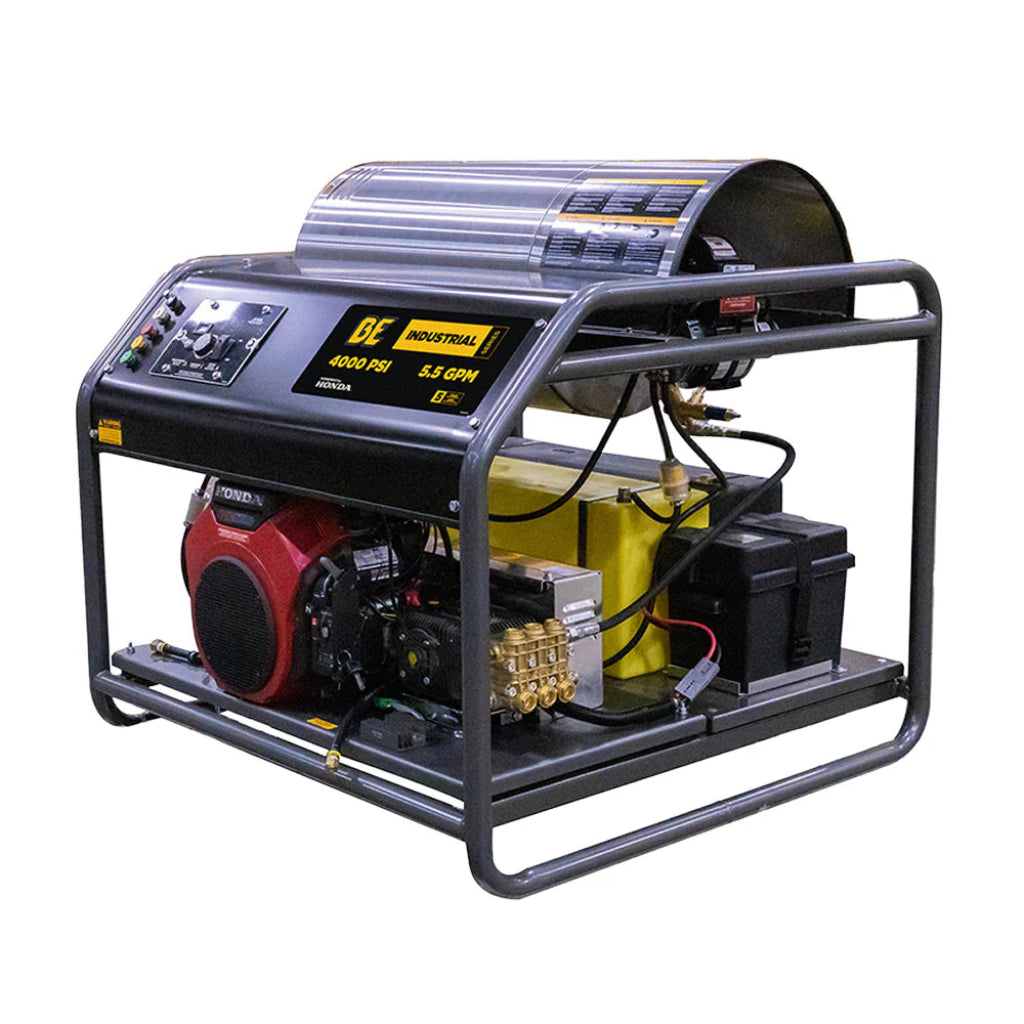

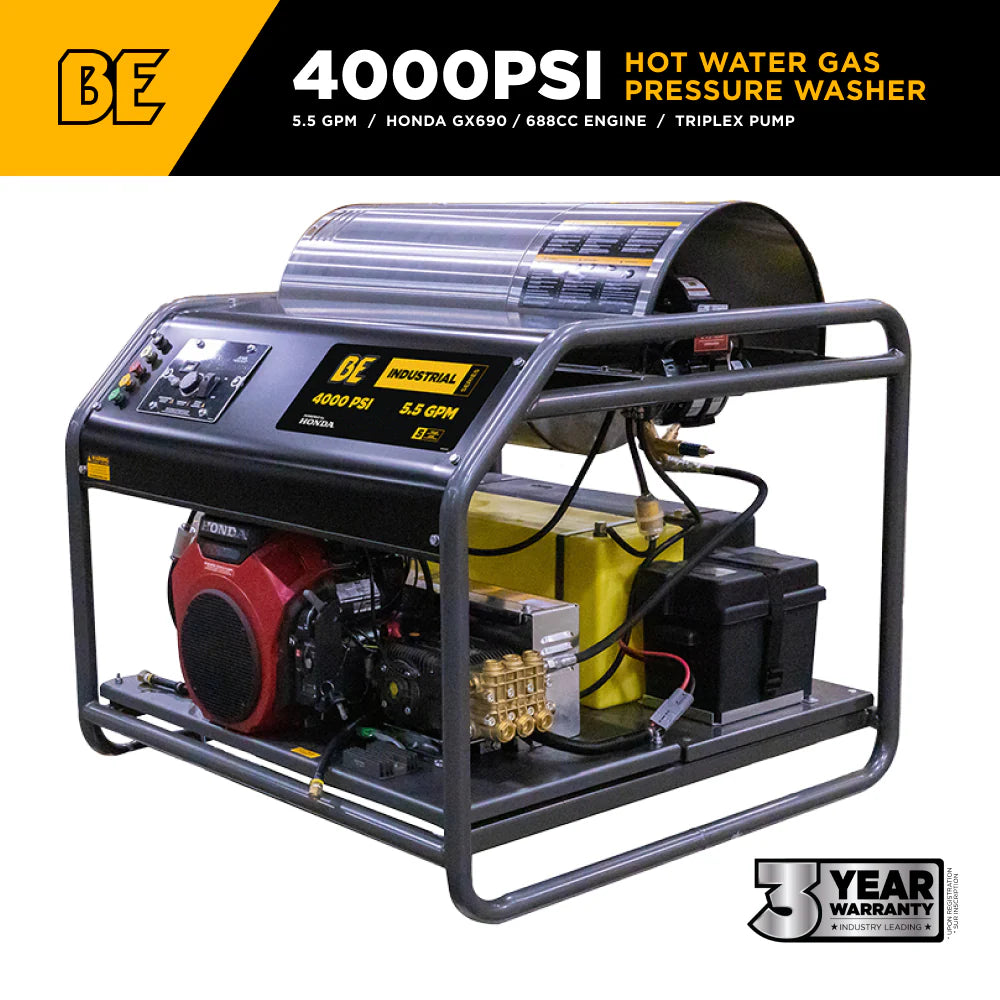

HW4024HA12V
Industrial Honda-Powered Stationary Hot Water Skid
🔥 200°F HEAT
4000 PSI
5.5 GPM
🛡️ CLICK FOR WARRANTY & POLICY INFORMATION
▼
STANDARD COVERAGE:
✅ 3-Year Honda GX Engine Warranty
✅ 5-Year CP Triplex Pump Warranty
✅ 3-Year Beckett Burner Warranty
✅ Lifetime Heating Coil Warranty
⚠️ WHAT IS NOT COVERED:Warranties cover
Manufacturer Defects only. The following are
EXCLUDED:
-
Wear Parts: O-rings, valves, nozzles, gun/wand.
-
User Error: Freeze damage (failure to winterize), running without water, or fuel contamination.
POWER & HEATING
ENGINE: HONDA GX690 V-TWIN (688CC)
High-performance V-Twin with Electric Start and Recoil backup. Provides massive torque for high-volume cleaning tasks.
BURNER: 12V BECKETT DIESEL BURNER
Industrial-grade 315,000 BTU burner system. Reaches a constant 200°F (93°C) for maximum degreasing and grease liquefaction.
PUMP: CP TRIPLEX (BELT DRIVE)
Reinforced CP triplex pump with a belt-drive system that lowers heat and RPM, drastically extending the service life of internal components.

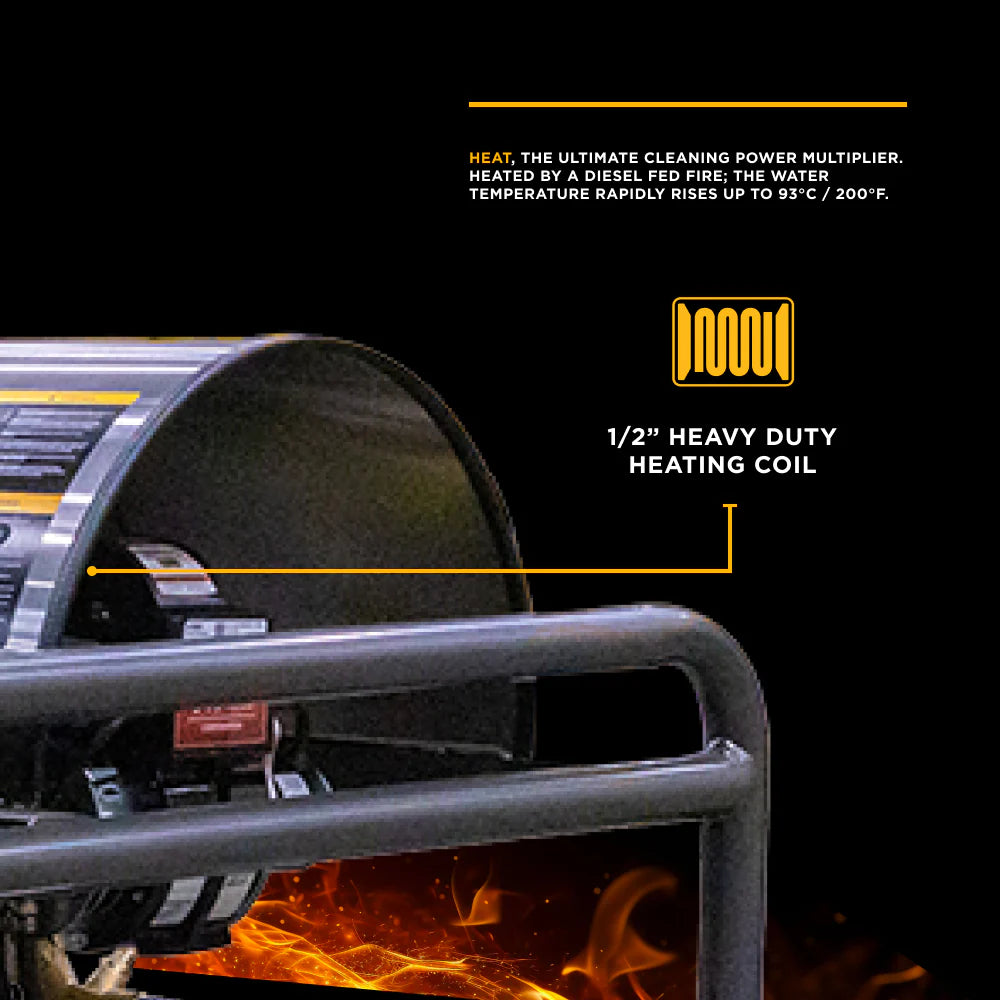

COIL: 1/2" SCH. 80 COLD ROLLED STEEL
Industrial 96' heating coil with a lifetime warranty against manufacturer defects.
PRO-SETUP: TANK & BYPASS READY
ENGINEERED FOR MOBILE CLEANING RIGS

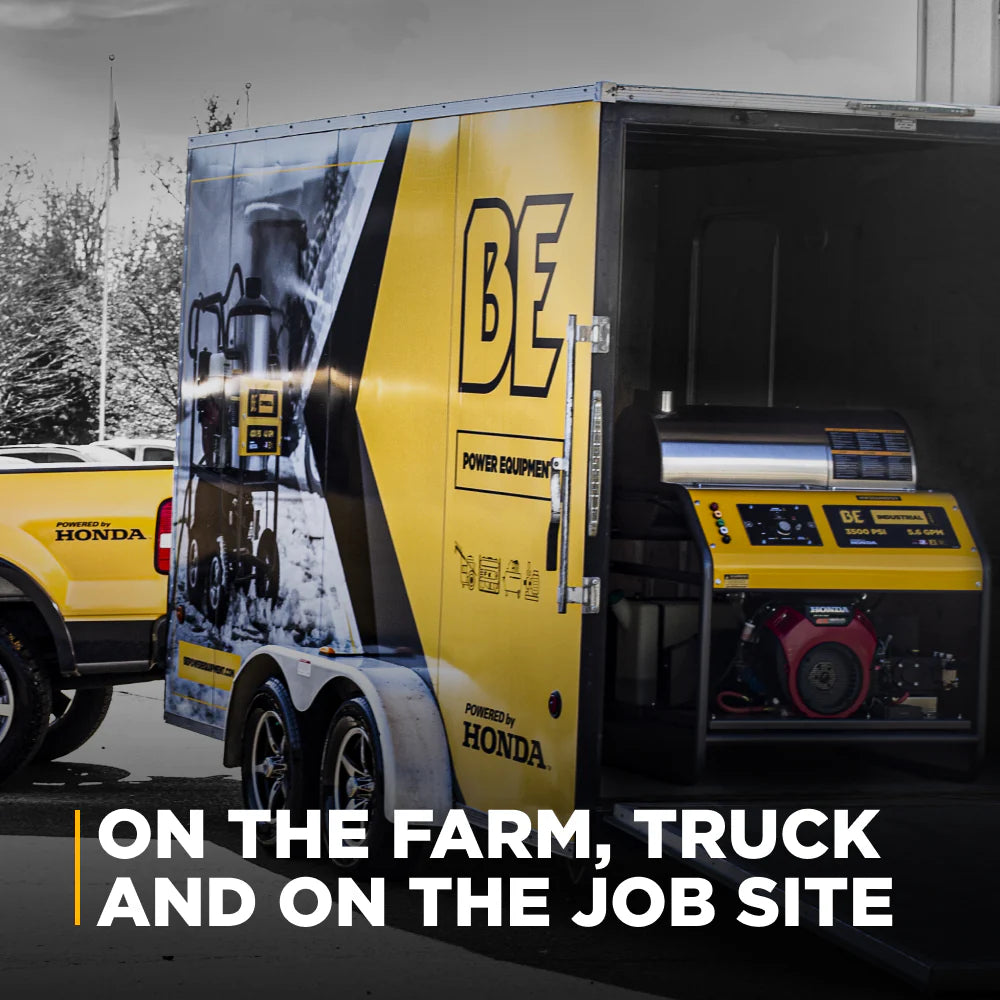

As a stationary skid, this unit is the foundation for professional truck and trailer setups. The

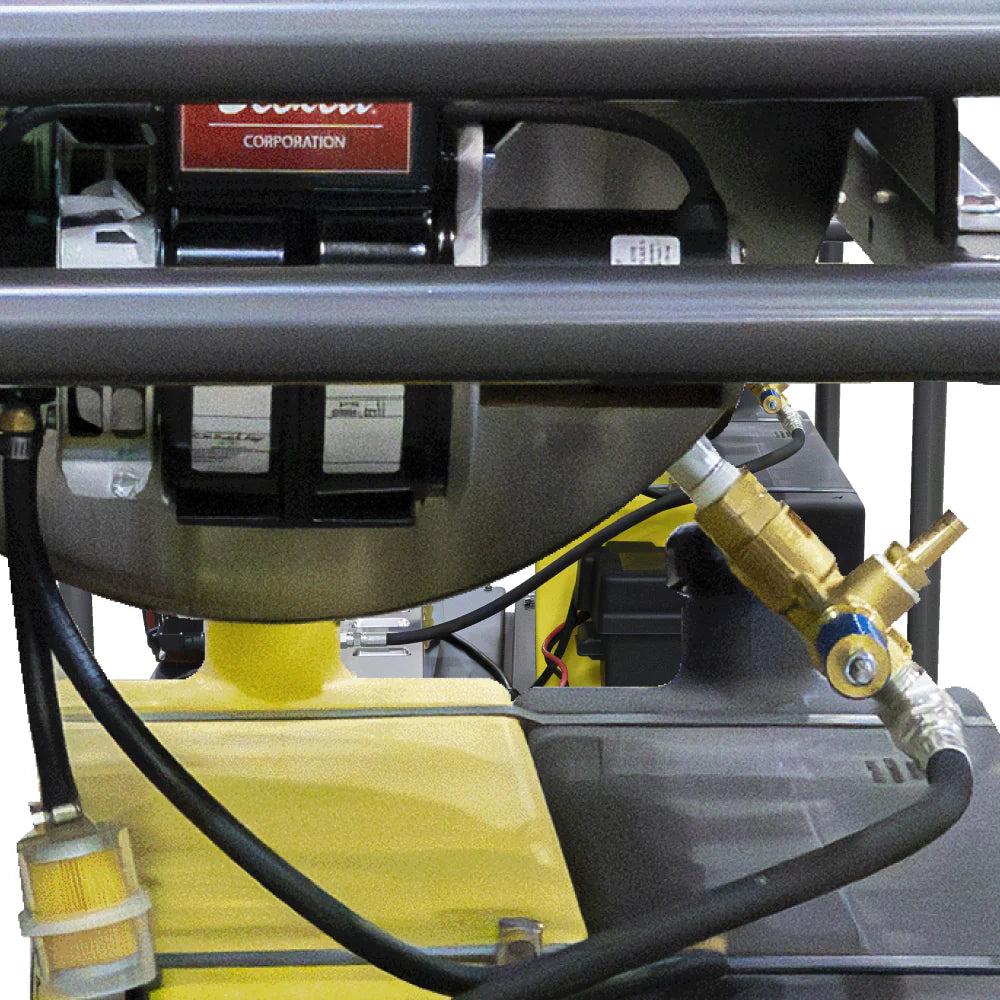

External Unloader allows for a "bypass-to-tank" configuration, while the
Belt Drive pump provides superior suction lift, making it the ideal setup for drawing water directly from on-board supply tanks.

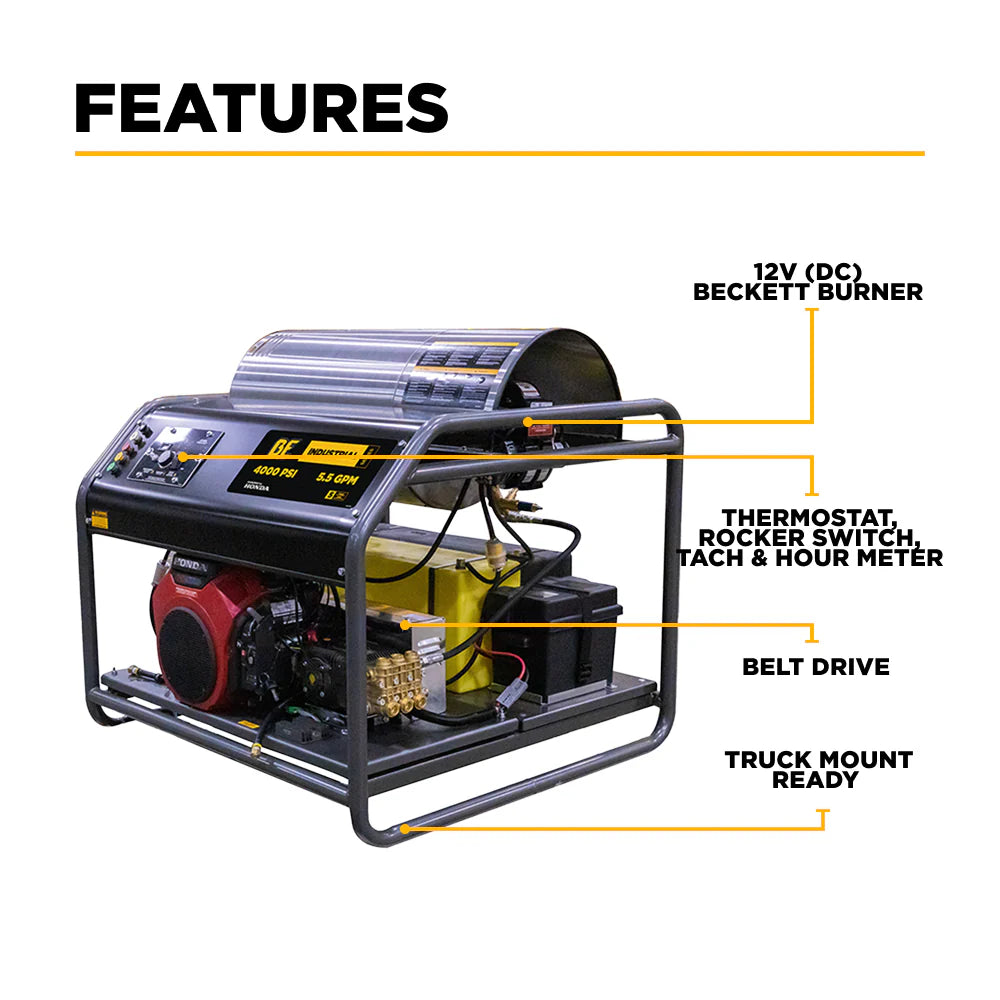

KEY FEATURES
Industrial Fuel Capacity
MASSIVE DUAL TANKS:

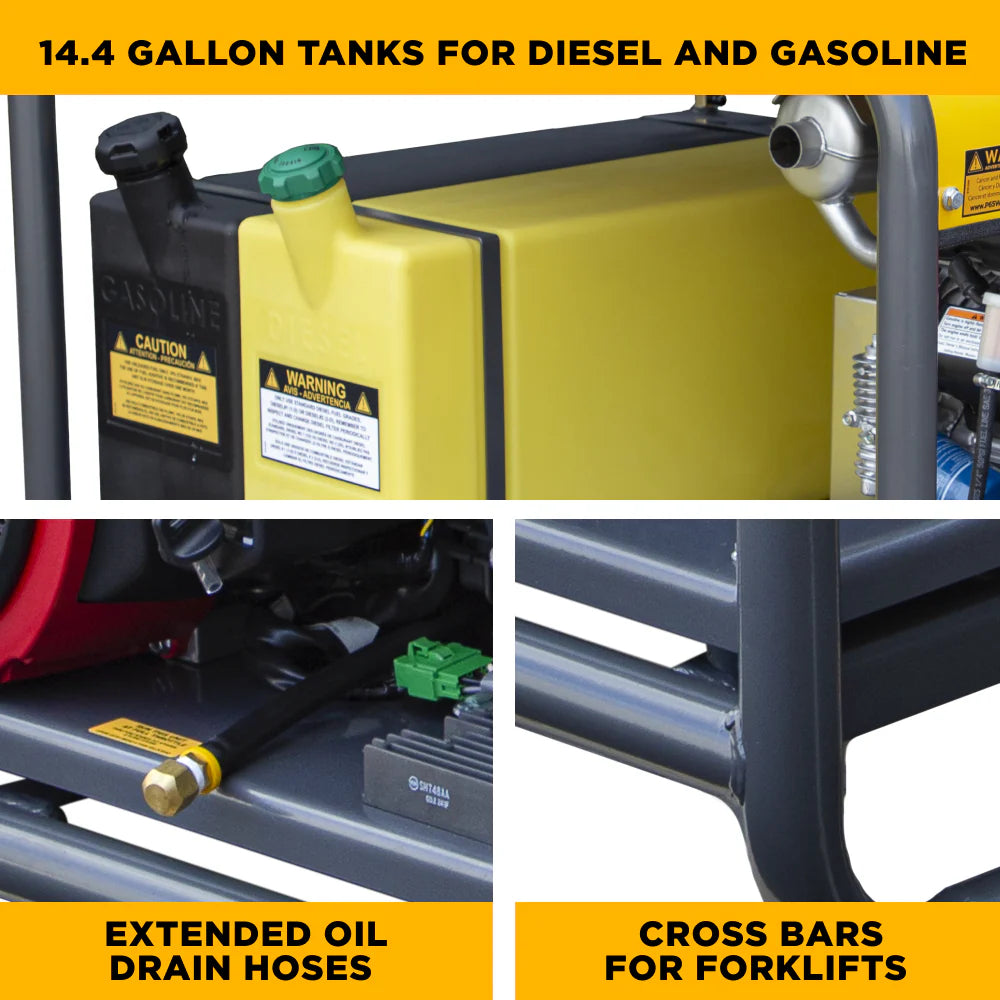

Equipped with two 14.4-gallon poly tanks (Diesel for burner / Gasoline for engine) for extended operation without frequent refueling.
Stationary Skid Design
-

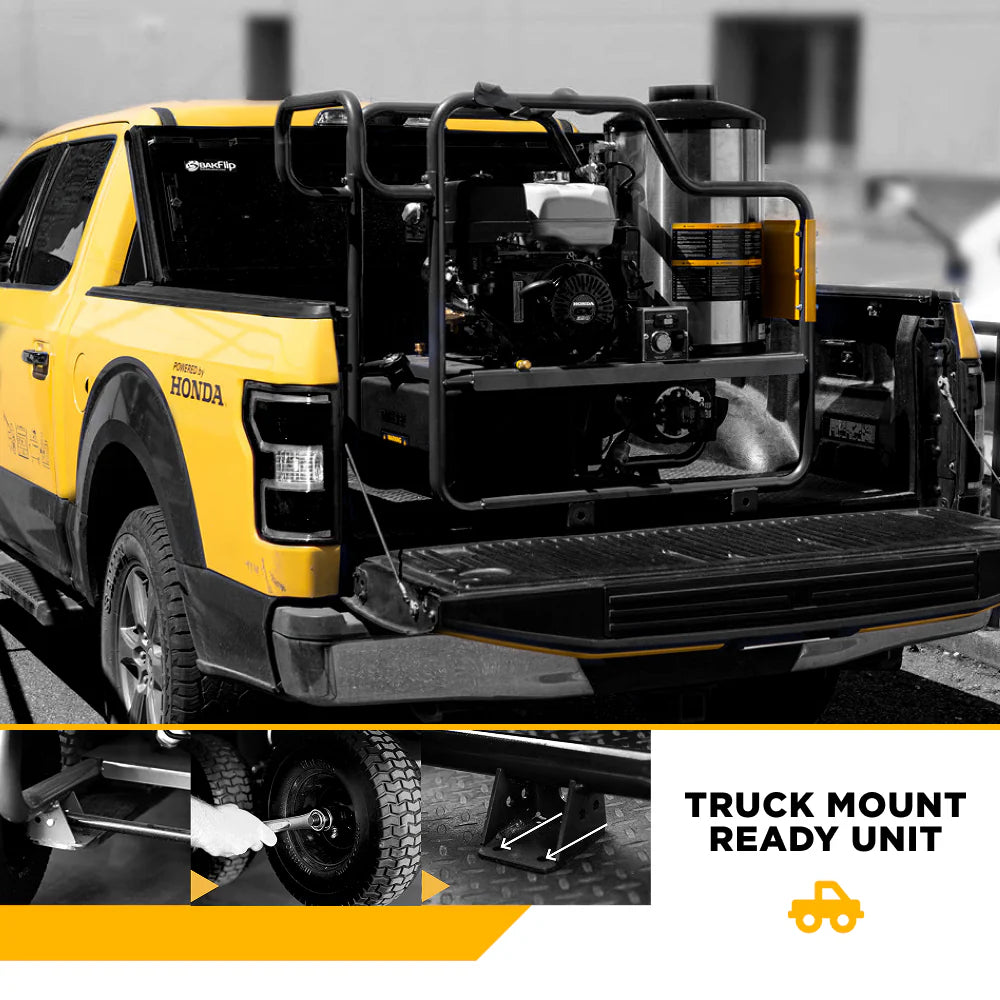

Truck Mount Ready: 1.5" OD reinforced roll-cage frame designed for permanent truck or trailer mounting.
-
Electric Start with 55AH Marine battery included for rapid job-site ignition.
-
Low Mess Maintenance: Integrated oil drain hoses on both engine and pump for easier servicing.
-
Lift Point: Built-in central hoist point for secure crane or forklift positioning.
JOB CAPABILITY

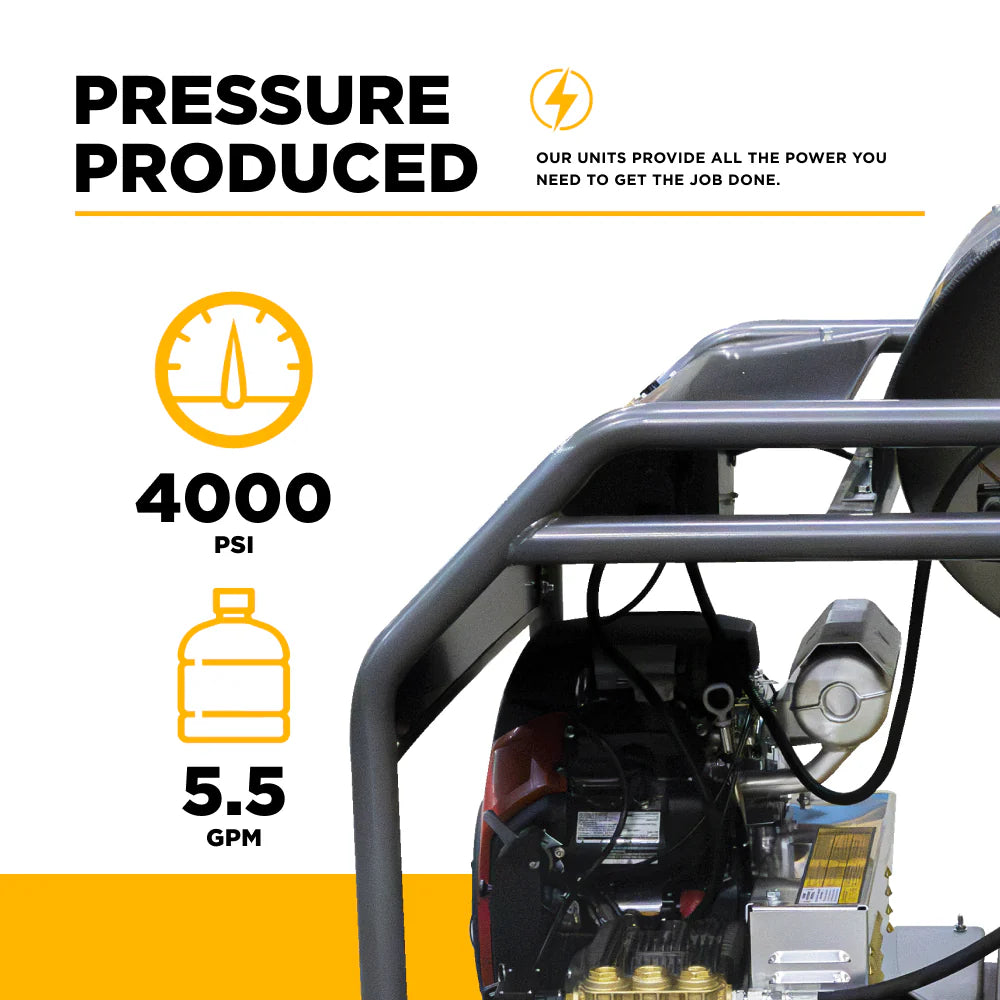

4000 PSI @ 5.5 GPM — HIGH-VOLUME INDUSTRIAL PERFORMANCE
The ultimate rinse and strip tool for industrial sites. The 5.5 GPM volume provides the flushing power needed for massive earthmoving equipment, agricultural sanitation, and large-scale grease remediation where both pressure and flow are required.
- Permanent Truck & Trailer Rigs
- Heavy Machinery Degreasing
- Industrial Machinery Sanitizing
- Oil & Grease Spill Remediation
- Construction Equipment Maintenance
- Large-Scale Mining Equipment Cleaning
IN THE BOX
- 1x
50' Steel Braided High-Pressure Hose (Double Wire Braided)
- 1x
47" Professional Insulated Spray Wand & Gun
- 5x
Quick-Connect Nozzles (0°, 15°, 25°, 40°, Soap)
- 1x
55AH Marine Battery
- 1x
Adjustable Soap Injector
LOGISTICS:
Unit Weight: 930 lbs
Dimensions: 48" L x 46" W x 51" H [cite: 10]
Fuel Type: Gas (14.4 Gal Engine) / Diesel (14.4 Gal Burner)
Note: Ships via LTL Freight. Professional setup and tank-plumbing recommended.
